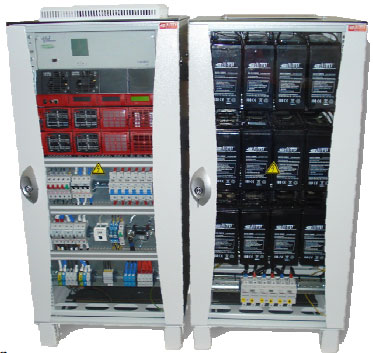

Modular Integration Systems DC/AC/DC gives different backup power for AC and DC power consumption, with required energy level also. The power from inside battery changed by modular inverter to AC power (single or three phase) and by DC/DC converter changed to required range of DC voltage, during black out from distribution mains.

ALBAT DC/AC/DC Integration Systems with its Modular design represents a perfect solution for a wide range application in the railways, energetics and telecommunication market.

MAIN FEATURES:

  • Input AC voltage from 150 V to 265 Vac
  • Input DC voltage 24 V, 48 V, 110 V, 220 Vdc
  • Single phase system for output AC voltage
  • Three phase system for output AC voltage
  • Output DC voltage for consumption: 12 V, 24 V, 36 V, 48 V, 60 V, 110 V, 220 Vdc
  • Switched-mode rectifier
  • Internal static switch
  • Manuel bypass
  • 19’’ Module
  • Modular design
  • Digital controller
  • Internal battery

AVAILABILITY:

  • N+1 redundancy
  • Hot swap conception
  • Galvanically isolated
  • Energy save via sleep mode
  • Temperature controlled charging
  • Battery test during operation
  • Local and remote control
  • LVDB system protection battery
  • Over voltage protection for system and modules
  • Enable the additional power extension

ECONOMIC EFFICIENCY:

  • High performance beside low volume and weight
  • High efficiency, power factor 0,99
  • Suitable for lead VRLA AGM/GEL batteries
  • All-inclusive system
