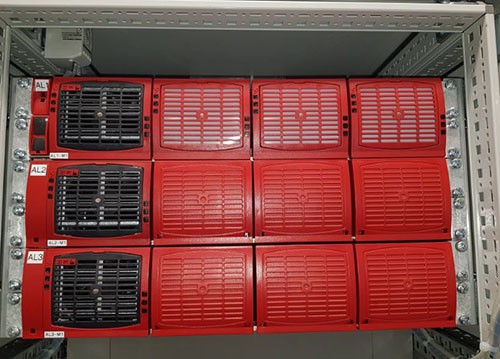

mi dcac 2Modular Inverter DC/AC has modular concept, providing a pure sine wave AC supply. In conjunction with a DC Power System, it provides an excellent AC backup solution. It uses the latest inverter technology, providing superior energy efficiency in a compact size.

The Twin Sine Innovation (TSI) technology eliminates all single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 96% reducing operation costs.

 ALBAT DC/AC Inverter with its Modular design represents a perfect solution for a wide range application in the industrial, energetics and telecommunication market.

 MAIN FEATURES:

  • Dual input sources (AC & DC)
  • Input AC voltage from 150 V to 265 Vac
  • Input DC voltage 24 V, 48 V, 110 V, 220 Vdc
  • Single phase system
  • Three phase system
  • Internal static switch
  • 19’’ Module
  • Transfer time 0 msec
  • Up to 10kVA in 2U
  • Up to 225kVA in 3 enclosures of 75kVA each
  • Modular design
  • Digital controller
  • Use of existing battery and rectifier system

AVAILABILITY:

  • N+1 redundancy
  • Galvanically isolated
  • Local and remote control
  • Over voltage protection for system and modules
  • Enable the additional power extension

ECONOMIC EFFICIENCY:

  • Low Mean Time to Repair (MTTR)
  • Reduction in service costs
  • High performance beside low volume and weight
  • Hot swap conception
  • All-inclusive system
