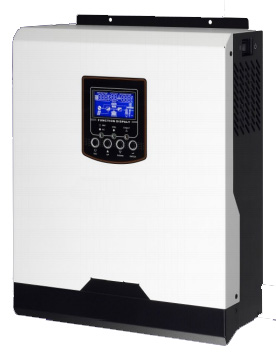

2424 ircSolar inverter AS 2424 PWM IRC is a versatile high frequency Pure Sine Wave inverter-charger designed for both off-grid or with grid (as backup) application. This series features a light weight and compact design, contains a 50A max PWM solar charger, as well a battery charger ranging 25A. AS 2424 PWM IRC features a wide input range support from 90~280VAC (Appliance Mode) and 170~280V (UPS Mode). This is especially important and useful for areas with unstable grid power supply. This controller offers AC or DC (solar) priority modes, and the controls can be easily modified from LCD menu that offers comprehensive system information. This controller was not designed to support parallel operation, genset starter, or remote LCD display, it offers several other improvement in areas such as better PCB integration, fuse protection against DC reverse polarity, built-in equalization charge and higher DC input limit.
When selected to operate in DC (solar) priority mode, inverter will increase charging current from Solar source whenever possible, while reducing current from utility sources.

APPLICATIONS:
- Off grid systems
- On grid – backup system

MAIN FEATURES:
- Multi-functional Controller, Inverter, Rectifier
- High frequency pure sine wave design
- Programmable menus
- Wide AC input range

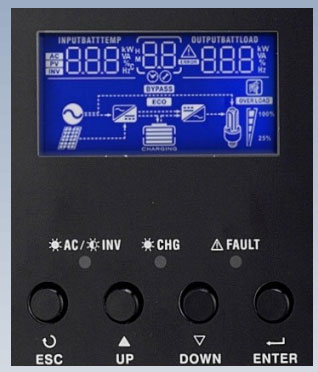

- LCD display + LED indicators
- Support main battery types (lead acid, LiFePO4)
- Free monitoring software
- USB communication interface

ELECTRICAL SPECIFICATIONS:
- Output power: 2400 W
- Output voltage: 230 Vac
- Output frequency: 50 Hz
- Nominal DC voltage: 24 Vdc
- Solar charger: PWM, 24 V, 50 A
- Battery charger: 24 V, 25 A

ENVIRONMENTAL / MECHANICAL SPECIFICATIONS:
- Operating temperature: 0 °C to +55 °C
- Operating humidity: 20 to 90 % RH – non-condensing
- Dimension: 330x285x90 mm
- Weight: 6,5 kg
