12 1ALBAT’s 12Vdc PV System completed by different products from our production. The system is intended for single phase load up to 1200W. Main DC voltage is 12Vdc, but in system can be integrated converter DC/DC if needed different DC voltage. We delivery all parts, like one product, ready for installation and full using. Different solution possible by request.

APPLICATIONS:
- Off grid systems for homes, cottages, mountain hut
- security
- communications
- traffic

INSTALLATION:
- indoor
- outdoor

MAIN PARTS:
- PV panels
- Solar controller, with integrated solar charger and solar inverter
- Deep cycle battery
- Mounting system for PV
- Battery rack

ELECTRICAL SPECIFICATIONS:

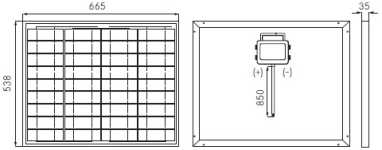

PV panels
- Power per PV panel: 50 W up to 280 W
- Total power: up to 1200 W
Solar controller, with integrated solar charger and solar inverter
- Type controller: PWM or MPPT
- Output power: 1200 W
- Output voltage: 230 Vac
- Output frequency: 50 Hz
- Nominal DC voltage: 12 Vdc
Deep cycle battery
- Nominal voltage: 12 Vdc
- Nominal capacity: 100Ah or more, in correlation of autonomy
- Technology: AGM or GEL or FLOODED
Mounting system for PV
- Installation: pitched or flat roof, open land, lamppost, …
Battery rack:
- Installation: indoor or outdoor
