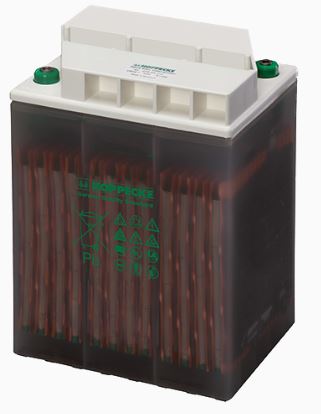

sun power V L blocThe HOPPECKE sun | power V L bloc is a stationary, low-maintenance lead-acid battery for cyclical applications. It guarantees long service life due to the use of optimised low antimony-selenium alloy and offers maximum cycle stability during operation with partial discharge (partial state of charge).

The impact-resistant, highly translucent jar ensures easy handling and optimal monitoring of the electrolyte level.

Product design to DIN 40737 Part 3 ensures highest level of compatibility when replacing existing equipment and for integration with the extension of existing battery systems.

The use of HOPPECKE system connectors results in the sun | power V L bloc providing increased short-circuit protection even during installation. It lengthens the interval between water refills to the point where no maintenance is required. It is equivalent to sealed lead-acid batteries given optional use of the aquagen recombination system, which prevents the discharge of gases and aerosols.

ADVANTAGES:

  • Highest cycle stability during PSoC1 operation – due to tubular plate design with efficient charge current acceptance
  • Maximum energy efficiency by optimised electrolyte recirculation sun | air prepared as standard
  • Maximum compatibility – dimensions according to DIN 40736-1
  • Higher short-circuit safety even during the installation – based on HOPPECKE system connectors

MAIN PERFOMANCE:

  • Nominal voltage: 6 Vdc and 12 Vdc
  • Nominal capacity: 6 Vdc, 202 Ah to 302 Ah
  • Nominal capacity: 12 Vdc, 50 Ah to 151 Ah
  • Technology: FLOODED
  • Contact: Top Terminal

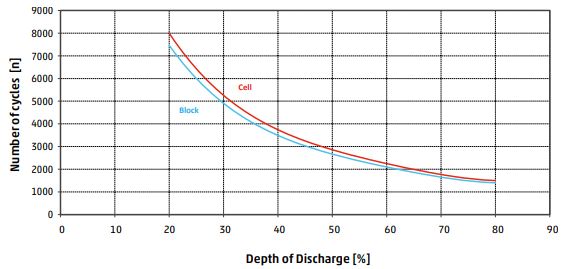

SERVICE LIFE IN CYCLES AND DEPTH OF DISCHARGE:

sun power V L 1

APPLICATIONS:

  • Emergency power supply (UPS)
  • Safety lighting
  • Network services / Large storage facilities
  • Village power supply
  • Local public transport.
